Products Description
1. Product Overview
The AI Edge Computing Server Box (AIbox-03) is an intelligent application server integrating over 100 AI algorithms. Featuring an 8-core 2.4GHz processor and up to 6TB of computing power, it rapidly deploys AI capabilities to edge devices with plug-and-play functionality, enabling instant AI empowerment.
2. Product Features
● Uses 100+ AI-specific algorithms.
●Supports RTSP video streaming and GB28281 protocol access.
●Supports the integration of computing power and application middleware for unified edge deployment.
●Supports remote device upgrades (connected devices)
●Open API, supports third-party integration
●Supports AI algorithm customization.
●Supports multi-channel video stream convergence management (NVR)
●Supports assigning different algorithm analysis tasks to different cameras
3. Specifications and Parameters
| system | ARM Linux （Ubuntu 20.2，Debian 10） |
| CPU | Eight-core processor with a maximum clock speed of 2.4GHz |
| GPU | Mali-G610 MC4 |
| NPU | 6 Tops AI Computing Power, Triple-Core Architecture |
| memory | Standard configuration: 8GB LPDDR4 RAM and 128GB eMMC storage |
| Display interface | 1 HDMI 2.1 port, supports up to 8K output |
| interface | 4 USB2.0 ports, 2 USB3.0 ports, and 1 USB OTG port |
| 2 RS232 serial ports (RS485 optional) | |
| network | 2 RJ45 ports + WIFI, 4G full-network compatibility optional |

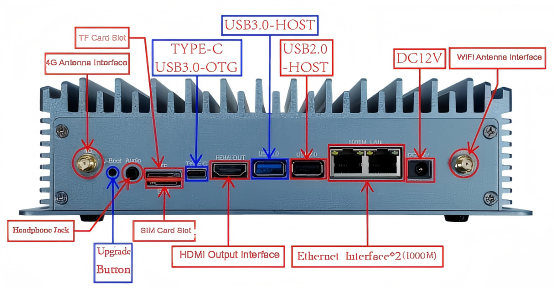

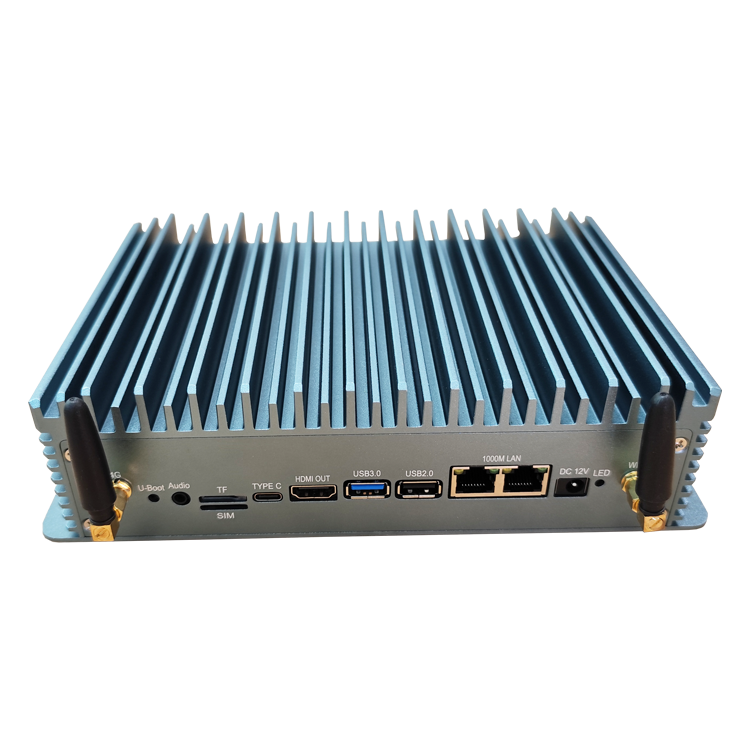

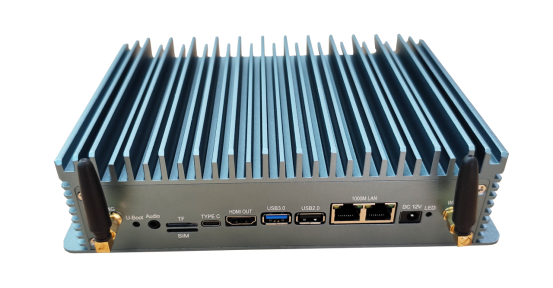

4.Physical Images
235mm*150mm*62.5mm (length*width*height)
5. AI Algorithm
Supports multiple AI algorithms preloaded and customizes algorithms based on application scenarios.
standard algorithm set | Personnel: Crowd detection, unauthorized access detection, climbing detection, off-duty detection, monitoring room absence detection, elevator entrapment detection, entry/exit detection, sleeping on duty detection, smoking detection, and various behavior analysis |
Vehicles: identification of dump trucks, electric vehicles entering elevators, vehicles driving against traffic, illegal parking of non-motorized vehicles, illegal parking of vehicles, vehicles crossing roads, heavy machinery, and separation of pedestrians from vehicles | |
Object: Detection of exposed soil piles, identification of work clothes and uniforms, recognition of reflective clothing, mask recognition, electric bicycle helmet recognition, insulation glove recognition, safety helmet recognition, fire extinguisher placement detection, epidemic prevention clothing recognition, cat and dog recognition | |
Environment: Roadside waste recognition, flame recognition, flame detection, waste overflow recognition, corridor clutter recognition, open equipment room/distribution room/unit door recognition, street vending recognition, smoke recognition, smoke detection | |
custom algorithm | Industrial inspection, production process monitoring, and quality control; |
Collect at least 50,000 samples, including annotation, design, modeling, training, parameter tuning, cropping, adaptation, and iteration |
6.application function
8. Application Scenarios
Smart Community/Industrial Park
Application of the algorithm and product: Occupying the fire lane parking, area intrusion identification, fall identification, smoke and open flame identification, boundary detection, occupation of the road, human figure counting, elevator and electric car detection, etc. are widely used in the identification of human and vehicle entry and exit identity verification, vehicle illegal parking, environmental sanitation detection and other violations and uncivilized behavior, fire hazard detection, etc.
area intrusion recognition
fall detection
boundary crossing detection
Elevator battery car inspection
Algorithm and Product Applications: These include firework detection, hazardous zone identification, wandering recognition, human figure detection, personnel presence monitoring, illegal fishing/stranger intrusion detection, fall recognition, and license plate recognition. The solutions are widely implemented in villas, courtyards, fish ponds, farms, aquaculture bases, and unmanned retail outlets.
hanging walk recognition
human figure detection
Food and beverage outlets
Algorithm and product application: Passenger flow statistics, VIP customer identification, smoking detection, phone call recognition, rodent infestation detection, chef's uniform and hat inspection, open flame off-duty, personnel operation standard, smoke and open flame identification, trash bin overflow detection, etc. are widely used in schools, catering, hospitals, etc.
Passenger flow statistics
smoking recognition
Call Detection
Rodent Detection
Smart Campus:
Student Behavior Analysis:
Fall detection, running detection, climbing detection, fight detection, smoke and fire detection, smoking detection, mobile phone detection, companion line detection, and area detection.
