The new industrial control board based on the Rockchip RK3576 has officially entered mass production! It has already been integrated into our edge computing box product line, capable of deploying a video analytics intelligent computing middleware platform or even running DeepSeek R1 1.5B, enabling private large-model AI applications.
1. Overview
Powered by Rockchip’s high-performance RK3576 octa-core ARM64 processor (clocked up to 2.2 GHz) with an integrated 6 TOPS NPU, the board supports both Android 14.0 (Linux kernel 5.10) and Ubuntu 22.04. It features an ARM Mali-G52 MC3 GPU, delivering outstanding graphics performance at a highly competitive price point. The chip supports 8K video decoding/encoding and 8K display output, equipped with multiple built-in display interfaces and multi-screen heterogeneous display capability. Rich high-speed I/O interfaces—including PCIe, USB Type-C, and Gigabit Ethernet—ensure excellent expandability.
2. Key Features
◆ Ultra-High Definition Support: Supports up to 8K video decoding and dual-channel displays via LVDS / eDP / MIPI / HDMI / V-by-One interfaces.
◆ Flexible Firmware Updates: Supports remote OTA, USB flash drive, microSD (TF) card, and USB-to-PC cable update methods.
◆ Plug-and-Play Display Configuration: Screen parameters can be configured via USB drive or TF card—simply plug in and the display lights up instantly. Fully compatible with displays of various sizes and resolutions.
◆ Comprehensive Touchscreen Support: Fully compatible with mainstream touch technologies—infrared, optical, capacitive, and resistive—including driver-free HID-compliant touchscreens requiring no calibration.
◆ Broad Peripheral Compatibility: Out-of-the-box support for industry-standard USB/serial peripherals, including printers, card readers, PIN pads, fingerprint scanners, cameras, ID card modules, QR code scanners, alcohol detectors, and more. Demo test programs provided.
◆ High Integration: Equipped with 7 USB ports, 7 serial ports, 4 GPIOs, and multiple connectivity options including Wi-Fi, RJ45 Ethernet, 4G, and 5G.
◆ PCIe Expansion Ready: Built-in PCIe module socket compatible with popular modules from vendors like Dorabot (DomainGrid) and Quectel, enabling flexible cellular connectivity.

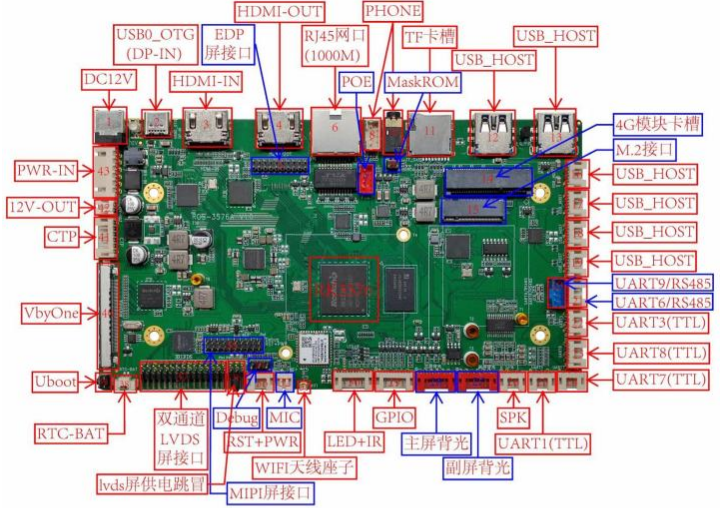

3. Physical Design and Interface Diagram
