Products Description
1.Applicable Scene
Ideal for smart construction sites, smart factories, and factory entrances/exits.
2.product presentation ：
The system features an embedded deep learning-based intelligent helmet and reflective vest recognition algorithm, capable of detecting, capturing, and identifying unattended safety equipment in real-time scenarios, with automatic alarm activation.
Supports detection of white, yellow, blue, and red safety helmets, as well as reflective vests in various colors.
Supports event alarm linkage, detection area settings, and area blocking with multiple parameter configurations.
Supports multiple alarm time settings and alarm target image uploads.
The highest resolution is 4 million pixels
Supports Onvif, GB28181, GA/T1400, MQTT, and other protocols
Supports 1 alarm input/output channel, 1 audio input/output channel, and built-in microphone/speaker
Supports DC12V/2A;
3.Specification Parameters
| Product model | I6018B-R40Y-SR-IL-ZF2812 |
| Mainboard performance | Computing power: 1.2 Tops, memory: 8GB RAM, flash memory: 8GB EMMC |
| Sensor type | 1/3"CMOS |
| Camera lens | |
| Lens type | Electroconvulsive therapy |
| Angle of field | (H)103.4 ° (W) - 29.3 ° (T) |
| (V)54.3 ° (W) - 16.5 ° (T) | |
| (D)124.2 ° (W) - 33.6 ° (T) | |
| Iris diaphragm | 1.6-3.3±10% |
| Focal distance | 2.8-12mm |
| Autofocus | Support |
| Supplementary illumination characteristics | |
| Infrared lamp | Maximum fill distance: 40 meters |
| White light lamp | Maximum fill distance: 10 meters |
| Light control | Auto/Manual, adjustable brightness |
| Picture characteristics | |
| Image Settings | Brightness, Contrast, Saturation, Sharpness |
| Minimal illumination | 0.001Lux (Color mode), 0.001Lux (Black and white mode), 0Lux (Backlight on) |
| White balance | Auto/Manual |
| Photoinhibition | Support |
| Backlight compensation | Support |
| Denoise | Supports 2D/3D digital noise reduction |
| Wide Dynamic | Support |
| Noise-signal ratio | ≥56db |
| Gain control | Auto/Shutter Priority/Gain Priority/Manual |
| Coding property | |
| Video compression standard | H.265、H.264、H.264H、H.264B、MJPEG |
| Resolution ratio | Stream 1: 2560x1440, 1920x1080, 1280x720 |
| Stream 2: 960x544,704x576,640x360 | |
| Video format | PAL(25fps)/NTSC (30fps) |
| Bit rate control | CBR/VBR |
| Default bitstream | 4096kbps |
| Bit rate adjustment range | Main and auxiliary bandwidths adjustable continuously from 30Kbps to 16Mbps |
| Audio compression standard | G.711A,G.711U,G.726 |
| Network characteristic | |
| Networking protocol | HTTP,TCP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS, PPPoE,IPv4/v6,UPnP,NTP |
| Protocol | Support Onvif, GB28181, GA/T1400, MQTT,HTTP |
| Functional characteristics | |
| General behavioral analysis | Area intrusion, jumper intrusion |
| Alarm function | Audio-visual alarm, Privacy shielding alarm, Motion detection alarm, Network failure alarm, Voice announcement |
| Video mode | Manual recording, Video event detection recording, Scheduled recording, Alarm recording |
| OSD superimpose | Time, channel title, device name, and custom support |
| Day and Night Mode | Supports scheduled, manual, and automatic transitions during the day and night. |
| Privacy Mask | Supports 4 region settings |
| Acoustic image | Supports 90°/180° image rotation |
| ROI | Support |
| Smart features | |
| Test type | Support for white, yellow, blue, and red safety helmets, as well as multi-colored reflective vests for incident detection |
| Surveyed area | Supports customization |
| Detection range | Supports adjustable minimum/maximum detection targets |
| Image type | Target image, panorama |
| Picture format | JPG |
| Interface properties | |
| Network interface | 1 2 RJ45 ports and 10/100M adaptive Ethernet port |
| Power interface | DC12V/2A (-15%~+10%) |
| Alarm interface | 1 In 1 Out |
| Audio interface | 1 1 audio input/1 audio output (RCA), built-in microphone/speaker |
| SD card slot | Maximum capacity: 256GB |
| Reset | Software reset |
| Physical characteristics | |
| Way to install | Wall mounting, hoisting |
| Working voltage | DC12V/2A (-15%~+10%) |
| Power dissipation | <8W |
| Working temperature | -30℃-+60℃ |
| Working humidity | 0% ~95% RH (no condensation) |
| Levels of protection | IP66 |
| Product size | 198*105*85mm |
| Packing measurement | 276*162*148 |
| Weight | 650g |

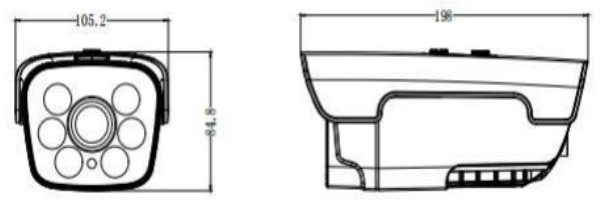

4.Product Size

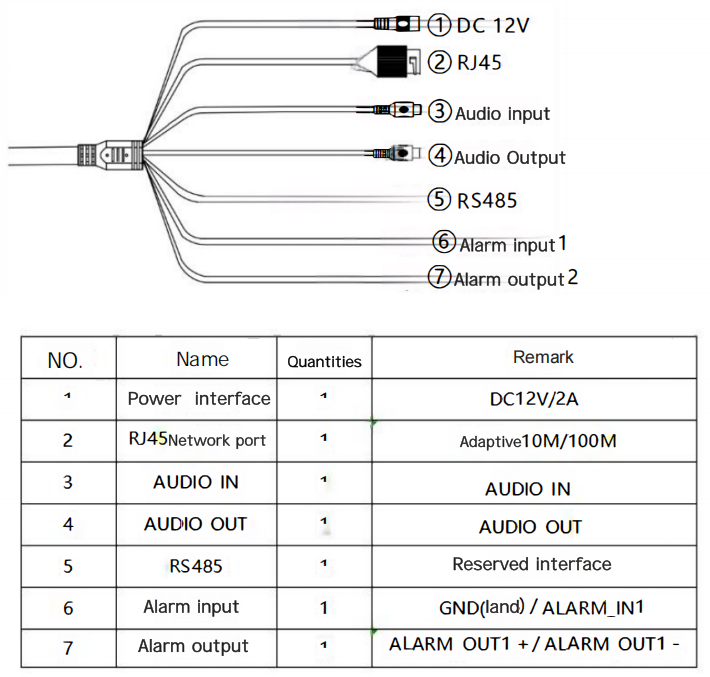

5.Interface definition
(subject to the actual shipped model)
