Products Description
1. Product Overview
The E10 is a comprehensive high-performance facial recognition building intercom smart terminal. Featuring dual high-definition cameras, 8-inch/10.1-inch HD IPS displays, touchscreens, IC card modules/second-generation ID card readers, and integrated offline facial recognition, mask detection, ID verification, card-based door access, and cloud intercom calling, it supports blacklist alerts, key personnel monitoring, photo retention upon passage, and real-time data upload. The wide dynamic range HD facial recognition camera operates reliably in harsh environments including strong light, backlight, and low-light conditions, offering fast recognition speed, high accuracy, and large database capacity. Compatible with smart community management systems, real-name construction site management systems, facial access control systems, visitor management systems, and campus access control systems, it is ideal for complex scenarios requiring temperature monitoring, identity verification, and access control in communities, campuses, hospitals, scenic areas, hotels, shopping malls, corporate offices, public service venues, and construction sites.
2. Product Features
●Featuring 99.7% recognition accuracy with offline facial recognition technology, supporting up to 20,000 entries in the offline database.
●Supports features such as facial recognition for whitelisted access, blacklisted alerts, photo capture upon passage, and real-time data upload to the platform
●Supports mask detection to identify whether individuals are wearing masks, enabling targeted personalized voice prompts and enhancing prevention awareness
●Supports optional ID card readers for biometric verification.
●Supports optional IC/ID dual-function card reader for contactless payment.
●Supports binocular live detection to prevent photo attacks.
●Support owner self-service face recognition (app).
●Supports batch import of lists from the property management office, making list management more efficient.
●Supports calling owners via the building intercom system's mobile app.
●Supports calling owners via the building intercom's WeChat mini-program to send photos of the entrance, allowing owners to open doors directly through their WeChat.
●Supports calling the property management center via intercom access control from the building, and the property management center management unit
Supports image and video ad playback
●Support remote upgrades from the management console
●Open API, supports third-party integration
3. Specifications and Parameters
product model | E8 | |
base stem or root of plants join count | Installation scenario | Wall-mounted installation / Bracket installation |
Working temperature and humidity | -10°C to 55°C, <90°C RH | |
levels of protection | IP55 | |
Body size | 270*135*25mm (length*width*thickness of the machine) | |
material quality | Body aluminum alloy | |
tie interconnected system join count | system | Android 5.1 / Android7.1 |
CPU | Dual-channel DRAM controller, 64-bit 4-core ARM chip | |
memory | 1GB of RAM and 8GB of data storage | |
display screen | An 8-inch HD IPS LCD display with 800×1280 resolution (the E10 model features a 10.1-inch IPS screen) Touch screen with virtual keyboard support. | |
focal length of lens | 4.3mm | |
camera | Dual-camera system with 2-megapixel resolution and wide dynamic range | |
swing card | IC/ID card dual functionality | |
4G communication | Supports 4G nationwide (optional) | |
know Bie nature Can | Recognition distance | 0.5-1.5m |
recognition time | less than 300ms | |
Face database capacity | 1：N，N<=20000 | |
precision | 99.70% | |
outside Wing come into contact with mouth | Power interface | 1 x DC12V, DC005 busbar 2.1*5.5 |
USB joggle | 2 x USB2.0 | |
relay output | 1 x analog output, 2PIN 3.8mm pitch terminals | |
RJ45 network cable interface | 1 RJ45 network port | |
RS485 | External ladder control, etc. | |

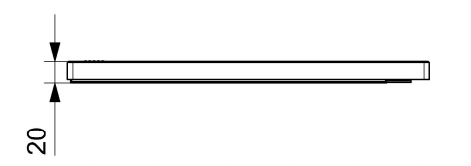

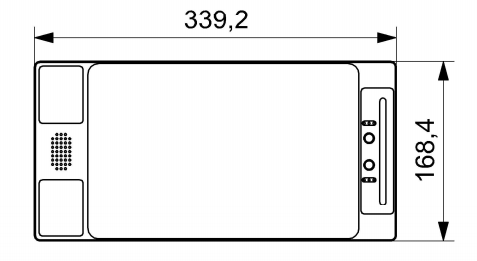

4.outline dimension
5.way to install
It supports wall-mounted and bracket-mounted installation, with optional sunshade and rainproof cover.
Wall-mounted installation with sun and rain protection.
