1. Product Overview

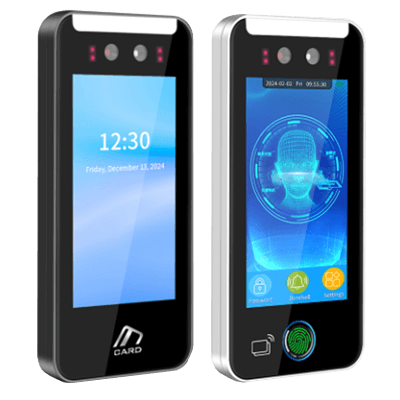

The E8 is a comprehensive facial recognition intelligent terminal. It can be configured with a QR code reader, dual-lens HD camera, 8-inch HD IPS display, and an optional ID card reader module. Integrated with offline facial recognition, mask detection, card-based access control, and more, it supports functions such as blacklist alert, key personnel monitoring, image capture on passage, and real-time data upload.

Equipped with a wide dynamic HD facial recognition camera, the device adapts well to challenging lighting conditions such as strong light, backlight, and low light. It features fast recognition speed and high accuracy.

The E8a can be integrated with smart community management systems, facial recognition-based construction site attendance systems, facial access control and attendance systems, visitor management systems, and campus access control systems. It is ideally suited for complex application scenarios such as communities, campuses, hospitals, scenic areas, hotels, shopping malls, office buildings, public service venues, and construction sites—where temperature monitoring, identity verification, and access control are required.

2. Product Features

l Adopts offline facial recognition technology with a recognition accuracy rate of 99.7%.

l Supports facial recognition whitelist access, blacklist alerts, image capture on passage, and real-time data upload to the platform.

l Supports mask-wearing detection for individuals, enabling targeted voice prompts to enhance prevention awareness.

l Supports dual-lens liveness detection to prevent photo spoofing attacks.

l Self-service facial data collection via mobile app or mini-program; property management can batch import personnel lists for efficient and time-saving list management.

l Customizable voice prompts for personalized voice broadcasting.

l Supports image and video advertisement playback.

l Supports remote device upgrades (requires internet connectivity).

l Open API interfaces for secondary development and integration.

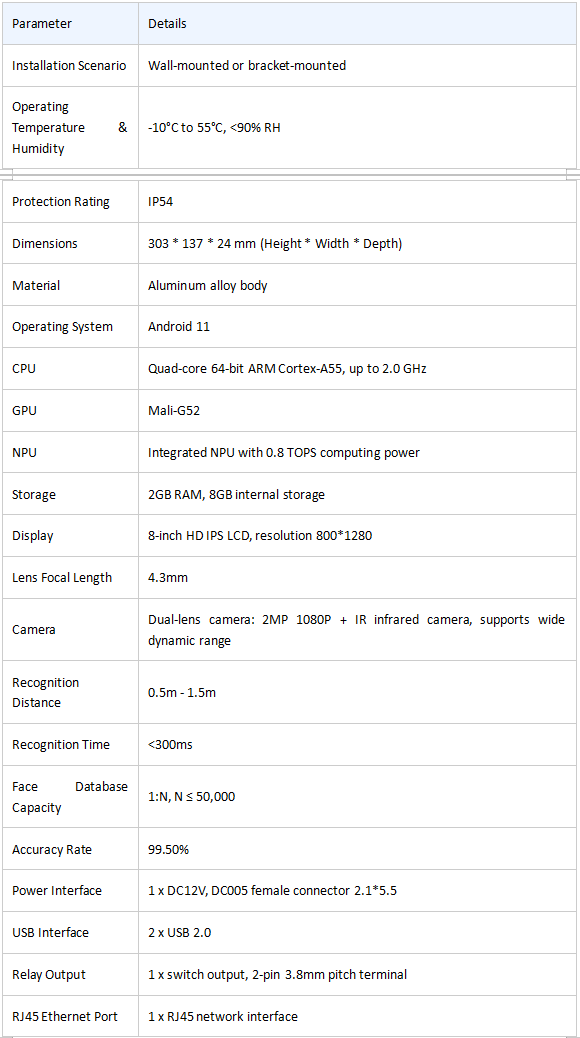

3. Technical Specifications

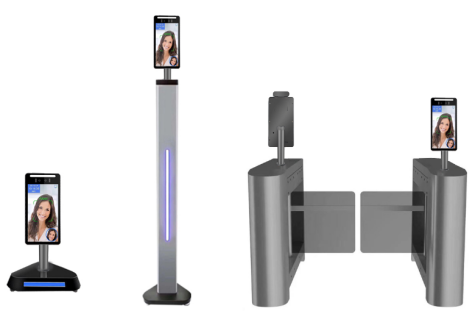

4.Installation Methods

Mounting options: gate integration, pole mounting, wall mounting (with optional sun/rain cover).Bracket hole diameter: 33 mm; recommended gate cutout: 35 mm.

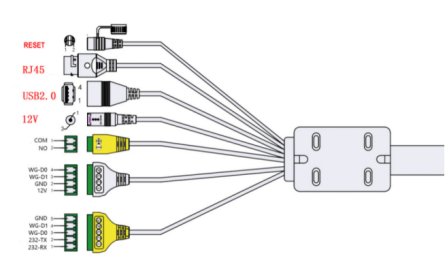

5.Cable Interface Definitions

6.Management Platform

The E8a is a comprehensive facial recognition access terminal compatible with platforms such as the Smart Safe Community Management Platform, Smart Labor Real-name System Platform, and FaceOne Office Park Application Platform. For details, please consult technical support.

The management platform provides standard APIs for data upload to third-party platforms.

7. External Interfaces

The device provides open API interfaces for integration with third-party platforms. If standard APIs do not meet requirements, customized interface development is available upon consultation with technical personnel.

8. Big Data Platform

Data can be stored locally or uploaded to a cloud platform. A big data platform is supported.

Enterprise Attendance: Supports attendance settings, work hour configuration, attendance records, shift scheduling, etc.

Visitor Appointment: Supports visitor appointment via WeChat mini-program, backend review, and entry after ID verification. Entry time windows or one-time access permissions can be set.
