Products Description
Face recognition camera
Fire Detection Camera
5mp 2.4G wifi /wired connection
Two way audio
Motion detection
Humanoid tracking
Customized ringtone
TF card (Max 256GB)
Cloud storage
| products | Model | AIC-P5A AI pan-tilt camera |
| Type | All-in-one board Homeuse PTZ | |
| system | Main processor | Ingenic T41 |
| Operating system | Embedded LINUX operating system | |
| Video | Imaging devices | 1/2.9 CMOS Sensor |
| Video encoding standards | H.265 | |
| System format | PAL 50HZ/NTSC 60HZ | |
| Effective resolution | 2880*1624（4MP） | |
| Video frame rate | 15fps | |
| Video streaming | 135kbps-2048kbps | |
| Minimum illuminance | Day mode 1Lux,night mode0.01Lux | |
| Day and night mode | Auto | |
| Video output | EasyVMS client/Mobile APP client | |
| Capture function | Support | |
| audio | Encoding standard | G.711U |
| Audio input | external MIC，An analog MIC with a signal-to-noise ratio of 42DB | |
| Audio output | External 8Ω/MAX 1.5W speakers | |
| Voice calls | Support full-duplex voice call function | |
| Recording | Recording mode | Alarm recording, timed recording |
| management | Video saving | TF card/PC/NVR |
| Cloud storage | Support |
| Alarm | Alarm detection | Fall detection, pet detection, and precise human shape detection |
| AI Tracking | Humanoid tracking, pet tracking | |
| Sound and light alarm | Yes, when equipped with dual light board, support sound and light alarm | |
| Alarm voice | Support text-to-speech and custom speech functions | |
| Alarm linkage | Linkage video recording, capture image send email and upload FTP server | |
| PTZ | Preset position | Supports 6 preset position settings |
| Tracking function | Support humanoid tracking, can set the guard position, the target tracking can be completed automatically back to the guard position | |
| Internet | Wifi | 2.4G antenna support, 802.11 b/g/n |
| RJ45 | HTTP,TCP/IP,IPV4,UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,IP Search(Support P6S IP camera, DVR, NVS and etc.) | |
| Call | One-click call | Yes, when calling, you can push pictures to the APP |
| Sleep | Sleep function | Supports scheduled sleep and immediate sleep functions to maintain user privacy |
| Other | TF card capacity | Supports up to 256GB (universal FAT32 format) |
| Operating voltage | USB 5V | |
| Operating current | 230mA ±10mA | |
| Work environment | -20℃——50℃ | |
| Size | Power board | 17mm*11mm |
| main board | 52mm*38mm | |
| ICR/LENS pitch | 20mm |

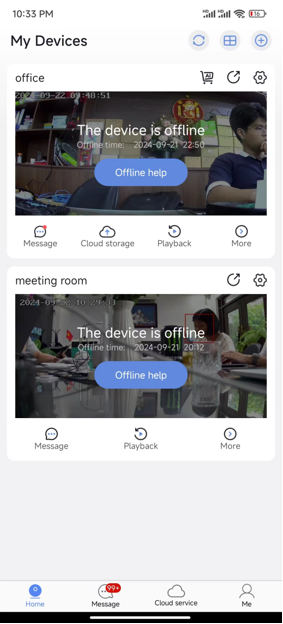

Preview of online video live streaming

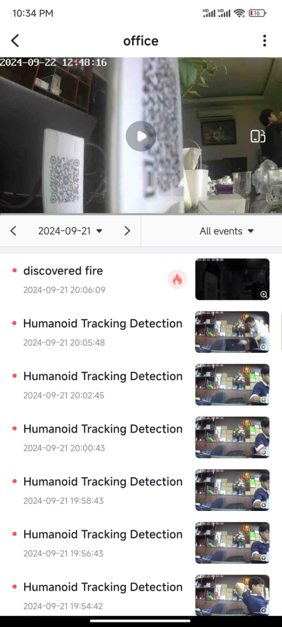

Real time push of warning events
